Refrigerants - Pressure vs. Temperature Charts

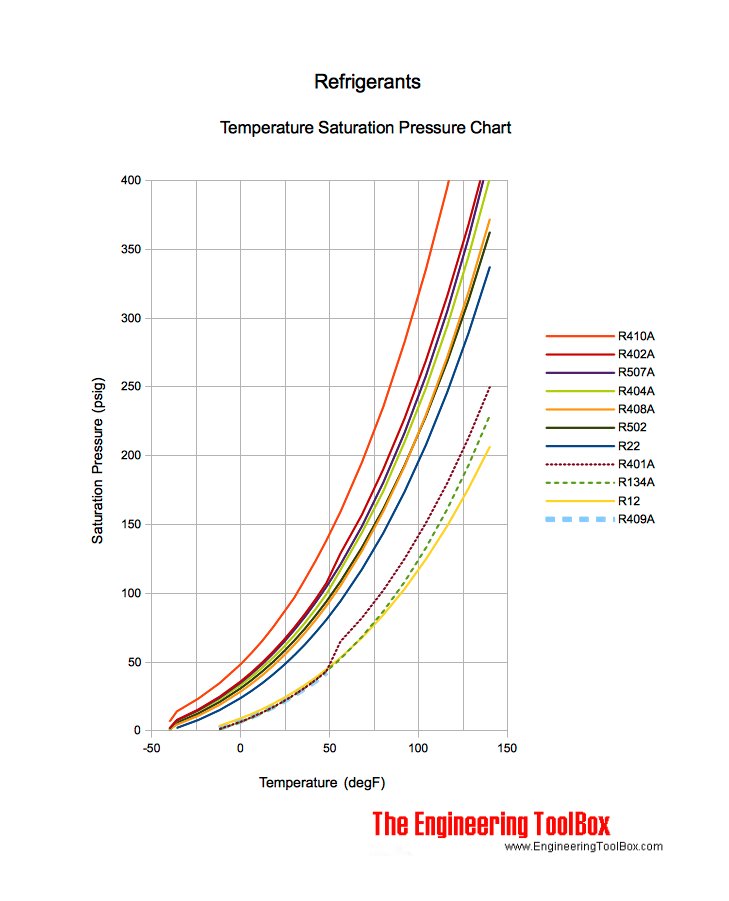

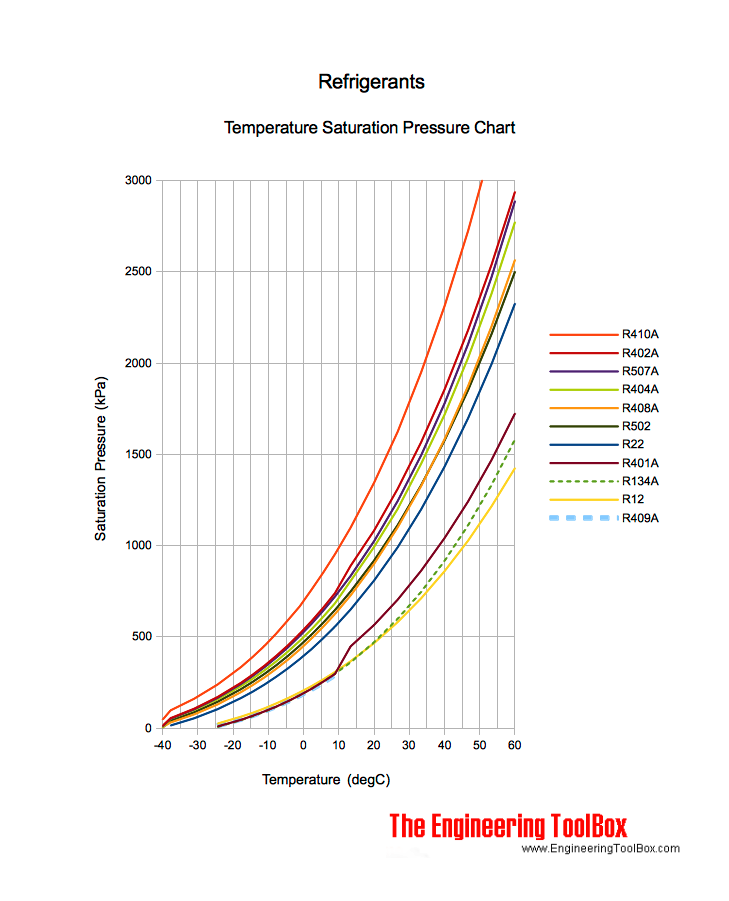

Temperature and pressure chart for refrigerants R22, R410A, R12, R134A, R401A, R409A, R502, R404A, R507A, R408A and R402A.

Related Topics

• Air Conditioning Systems

  Design of Air Conditioning systems - heating, cooling and dehumidification of indoor air for thermal comfort.

Related Documents

• Dichlorodifluoromethane - Properties

  Properties of saturated liquid Dichlorodifluoromethane R-12 - CCl2F2 - density, specific heat capacity, kinematic viscosity, thermal conductivity and Prandtl number.

• Dichlorodifluoromethane - Properties, Imperial Units

  Properties of saturated liquid Dichlorodifluoromethane - CCl2F2 - density, specific heat, kinematic viscosity, thermal conductivity and Prandtl number.

• Net Refrigeration Effect

  The quantity of heat absorbed from a refrigerated space.

• R-12 Dichlorodifluoromethane - Properties

  Thermodynamic properties of saturated and superheated Dichlorodifluoromethane (CF2Cl2), like specific volume, enthalpy and entropy.

• R22 Refrigerant - Properties

  Properties of Refrigerant R22 Dichlorodifluoromethane - saturated liquid and saturated vapor - imperial and metric units.

• Refrigerant Compressors - Evaporation Temperature, Condensating Temperature and Capacity

  Evaporation temperature, condensing temperature and refrigerant compressor capacity.

• Refrigerant R22 - Thermodynamic Properties

  Thermodynamic properties of R22, like vapor volume, enthalpy and entropy at pressures from 30 to 260 psia.

• Refrigerants

  Commonly used refrigerants - the methane series, ethane series, propane series, cyclic organic compounds, zeotropic blends, azeotropic blends and organic compounds.

• Refrigerants - Environmental Properties

  Physical and environmental properties of some common refrigerants.

• Refrigerants - Environmental Properties

  Refrigerants - Ozone Depletion (ODP) and Global Warming Potential (GWP).

• Refrigerants - Physical Properties

  Physical properties of refrigerants - molecular weight, boiling, freezing and critical points.

• Refrigerants - Saturation Pressures vs. Temperatures

  Temperature and pressure diagram for constant boiling refrigerants - imperial and SI units.
