# Moist Air - the Mollier Diagram

## The Mollier diagram is a graphic representation of the relationship between air temperature, moisture content and enthalpy - and is a basic design tool for building engineers and designers.

Air is a mixture of mostly oxygen, nitrogen and water vapor. The Mollier diagram is a graphic representation of the relationship between air temperature, moisture content and enthalpy, and is a basic design tool for building engineers and designers.

The Mollier diagram is a variant of the psychrometric chart .

### Example - How to use the Mollier Chart

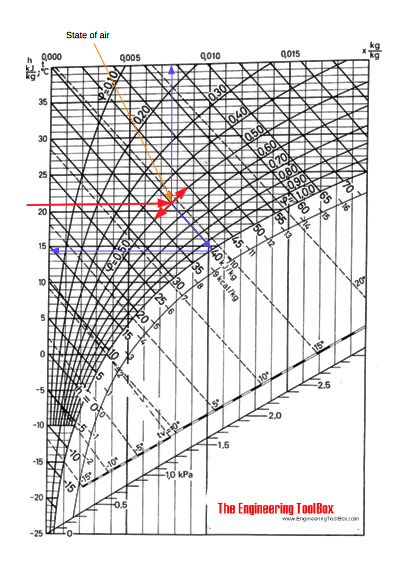

The state of air with dry bulb temperature 21 oC and relative humidity 50% is indicated in the Moliier chart below:

From the Mollier chart the enthalpy of the moist air is approximately 40 kJ/kg . The wet bulb temperature is approximately 14.5 oC . The specific humidity is approximately 0.0076 kg/kg .

Alternatively - if the dry bulb temperature is 19 oC and the wet bulb temperature is 12 oC - the state of the air can be visualized in the Mollier chart like:

From the chart we can see that the enthalpy of the air is approximately 33 kJ/kg and the specific humidity is approximately 0.0056 kg/kg .
