Aluminum and Copper Wires - Electrical Resistance vs. Cross-Sectional Area

Electrical resistance in plain copper or aluminum wires.

Sponsored Links

Electrical resistance in single core conductors:

Aluminum and Copper Wires - Electrical Resistance vs. Cross-Sectional Area
Cross Sectional Area
(mm2)
Resistance
(ohm/km)
Copper Aluminum
0.5 34.5 53
0.75 23 35.3
1.0 17.2 26.5
1.5 11.5 17.7
2.5 6.9 10.6
4.0 4.3 6.6
6.0 2.9 4.4
10 1.7 2.7
16 1.1 1.7
25 0.69 1.1
35 0.49 0.76
50 0.34 0.53
70 0.25 0.38
95 0.18 0.28
120 0.14 0.22
150 0.11 0.18
185 0.093 0.14
240 0.072 0.11
300 0.058 0.088
400 0.043 0.066
500 0.035 0.053
630 0.027 0.042

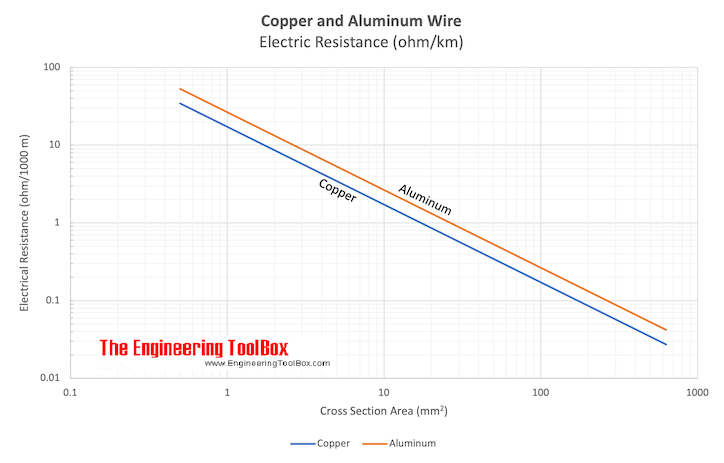

Copper and Aluminum wire - electrical resistance

Download and print Copper and Aluminum Wire - Electrical Resitance chart
